Lourdes dress

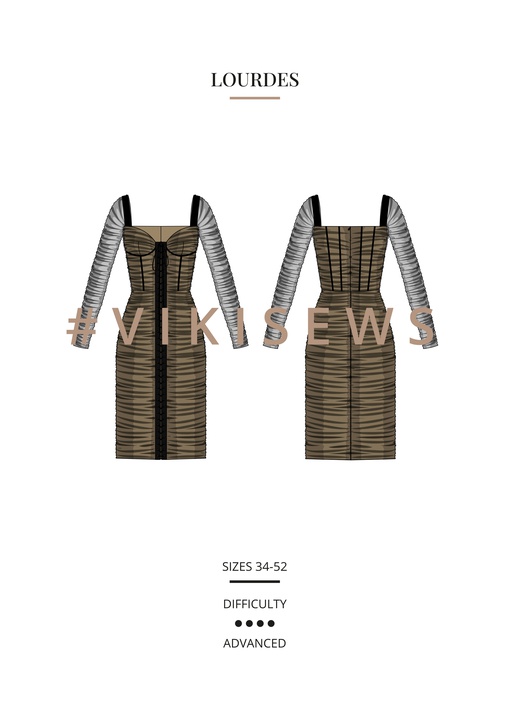

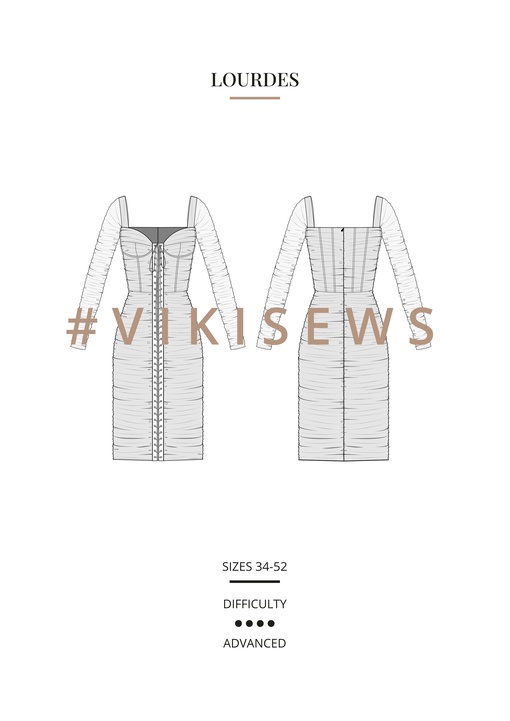

Lourdes is a close-fitting, lingerie-inspired dress with a boned corset bodice and separate bra cups. The dress is made of two types of fabric. The inner layer is made of mesh, while the overlay is made of tulle and is ruched along all edges. The faux plackets with grommets form the lace-up front. The ruched sleeves are long and narrow. The dress closes with an invisible zipper in the center back seam. Lourdes is below-knee length.
Model Sofia: Height 172 cm (5'8"), Bust 84 cm (33 1/8”), Waist 64 cm (25 1/4”), Hips 90 cm (35 3/8”). Sofia is wearing size 36 in height 3.
Approximate sewing time – 3 days (22 hours).
To sew this dress, choose knit fabrics with the following properties:
- medium-weight, pliable, soft, stretchy, sheer
- the fiber content can include artificial fibers (viscose), blends (viscose + polyester, etc.), and synthetics (nylon, polyester, polyester + elastane)
- the following fabrics are recommended: tulle, stretch mesh.
Attention! We do not recommend knit fabrics with a lot of stretch or non-stretch fabrics.
For the inner layer and lining, we recommend using medium-weight, soft, pliable mesh with small holes. Choose fabrics made of synthetic fibers (polyester + elastane).
For the casings, straps, and plackets, choose opaque, medium-weight, soft fabrics without stretch. You can use fabrics made of artificial fibers (viscose), blends (viscose + polyester, etc.), or synthetics (polyester).
The dress in the photos is made of two layers of tulle. The fabric is medium-weight, pliable, soft, stretchy, and opaque. The fiber content is 100% nylon.
The inner layer and lining are made of stretch mesh. The fabric is medium-weight, pliable, soft, and stretchy. The fiber content is 100% polyester.
The casings, straps, and plackets are made of silk satin. The fabric is medium-weight, soft, without stretch. The fiber content is 100% polyester.
1. Main fabric for the outer layer (tulle), 300 cm wide, with a directional print/nap, in meters:
Height, cm | Sizes | |||||
34 | 36 | 38 | 40–42 | 44 | 46–52 | |
1 (154–160) | 2.5 | 2.6 | 2.95 | 3 | 3 | 3.25 |
2 (162–168) | 2.5 | 2.7 | 2.95 | 3 | 3.1 | 3.3 |
3 (170–176) | 2.55 | 2.8 | 3 | 3.05 | 3.1 | 3.35 |
4 (178–184) | 2.6 | 2.9 | 3.05 | 3.1 | 3.15 | 3.4 |
Main fabric for the outer layer (tulle), 118” wide, with a directional print/nap, in yards:
Height, ft | Sizes | |||||
34 | 36 | 38 | 40–42 | 44 | 46–52 | |
1 (5’1”–5’3”) | 2 3/4 | 2 7/8 | 3 1/4 | 3 1/4 | 3 1/4 | 3 1/2 |
2 (5’4”–5’6”) | 2 3/4 | 3 | 3 1/4 | 3 1/4 | 3 3/8 | 3 5/8 |
3 (5’7”–5’9”) | 2 3/4 | 3 | 3 1/4 | 3 3/8 | 3 3/8 | 3 5/8 |
4 (5’10”–6’1”) | 2 7/8 | 3 1/8 | 3 3/8 | 3 3/8 | 3 1/2 | 3 3/4 |
Main fabric for the inner layer (mesh), 140 cm wide, with a directional print/nap, in meters:
Height, cm | Sizes | |||
34–38 | 40–44 | 46–48 | 50–52 | |
1 (154–160) | 1.5 | 1.75 | 1.85 | 2 |
2 (162–168) | 1.55 | 1.8 | 1.9 | 2.1 |
3 (170–176) | 1.6 | 1.85 | 2 | 2.15 |
4 (178–184) | 1.65 | 1.9 | 2.05 | 2.25 |
Main fabric for the inner layer (mesh), 55" wide, with a directional print/nap, in yards:
Height, ft | Sizes | |||
34–38 | 40–44 | 46–48 | 50–52 | |
1 (5’1”–5’3”) | 1 5/8 | 1 7/8 | 2 | 2 1/8 |
2 (5’4”–5’6”) | 1 3/4 | 2 | 2 1/8 | 2 1/4 |
3 (5’7”–5’9”) | 1 3/4 | 2 | 2 1/8 | 2 3/8 |
4 (5’10”–6’1”) | 1 3/4 | 2 1/8 | 2 1/4 | 2 1/2 |
2. Additional fabric (satin), 140 cm wide, with a directional print/nap, in meters:
Height, cm | Sizes 34–52 |
1 (154–160) | 0.85 |
2 (162–168) | 0.9 |
3 (170–176) | 0.95 |
4 (178–184) | 1 |
Additional fabric (satin), 55" wide, with a directional print/nap, in yards:
Height, ft | Sizes 34–52 |
1 (5’1”–5’3”) | 7/8 |
2 (5’4”–5’6”) | 1 |
3 (5’7”–5’9”) | 1 |
4 (5’10”–6’1”) | 1 1/8 |
3. Interfacing, 140 cm wide, in meters:
Height, cm | Sizes 34–52 |
1 (154–160) | 0.85 |
2 (162–168) | 0.9 |
3 (170–176) | 0.95 |
4 (178–184) | 1 |
Interfacing, 55” wide, in yards:
Height, ft | Sizes 34–52 |
1 (5’1”–5’3”) | 7/8 |
2 (5’4”–5’6”) | 1 |
3 (5’7”–5’9”) | 1 |
4 (5’10”–6’1”) | 1 1/8 |
4. Clear elastic, 1 cm wide, for gathering the underarm sleeve seam (cut into two equal parts), in meters:
Height, cm | Sizes | |||||||||
34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 | |
1 (154–160) | 1.08 | 1.08 | 1.07 | 1.06 | 1.05 | 1.04 | 1.03 | 1.02 | 1.01 | 1 |
2 (162–168) | 1.12 | 1.11 | 1.11 | 1.1 | 1.09 | 1.08 | 1.06 | 1.06 | 1.05 | 1.04 |
3 (170–176) | 1.15 | 1.14 | 1.13 | 1.12 | 1.11 | 1.1 | 1.09 | 1.08 | 1.08 | 1.07 |
4 (178–184) | 1.19 | 1.18 | 1.17 | 1.16 | 1.15 | 1.14 | 1.13 | 1.13 | 1.12 | 1.11 |
Clear elastic, 3/8" wide, for gathering the underarm sleeve seam (cut into two equal parts), in yards:
Height, ft | Sizes | |||||||||
34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 | |
1 (5’1”–5’3”) | 1 1/8 | 1 1/8 | 1 1/8 | 1 1/8 | 1 1/8 | 1 1/8 | 1 1/8 | 1 1/8 | 1 1/8 | 1 1/8 |
2 (5’4”–5’6”) | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/8 | 1 1/8 | 1 1/8 | 1 1/8 | 1 1/8 |
3 (5’7”–5’9”) | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/8 | 1 1/8 | 1 1/8 |
4 (5’10”–6’1”) | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 |
IMPORTANT! When purchasing fabric, please account for shrinkage and buy 5% more than required.
5. Stitched bias-cut fusible stay tape with stitch reinforcement, 1.5 cm (5/8") wide – 1.5 m (1 5/8 yd).
6. One invisible zipper, 50 cm (19 5/8") long, for all sizes and heights.
7. Rigilene boning (synthetic whalebone), 8 mm (just under 3/8") wide – 3 m (3 1/4 yd).
8. One pair of bra cups (in the necessary size).
9. One pair of bra underwires (in the necessary size).
10. Cord, 4 mm (just over 1/8") in diameter – 9 m (9 7/8 yd).
11. Grommets, 5 mm (just under 1/4") in diameter:
- 64 for height 1 (all sizes)
- 68 for height 2 (all sizes)
- 70 for height 3 (all sizes)
- 72 for height 4 (all sizes).
12. Matching thread for the outer layer – 1 spool.
13. Matching thread for the inner layer – 1 spool.
- sewing machine for construction
- edgestitch foot for the sewing machine (optional)
- invisible zipper foot for the sewing machine
- press tool for installing grommets
- lighter or matches for melting the boning.
Ease type | Ease measurement, cm | Ease measurement, in |
Bust ease | -1.9 – -4.1 | -3/4 – -1 5/8 |
Waistline ease | -1.9 – -2.4 | -3/4 – -1 |
Hipline ease | -4.6 | -1 3/4 |
Upper arm ease | 1.7–1.8 | 5/8–3/4 |
Height, cm | Back length from waist down, cm | Sleeve length including part of shoulder (estimated), cm |
1 (154–160) | 62 | 69.9–70.4 |
2 (162–168) | 65 | 71.9–72.4 |
3 (170–176) | 68 | 73.8–74.2 |
4 (178–184) | 71 | 75.8–76.2 |
Height, ft | Back length from waist down, in | Sleeve length including part of shoulder (estimated), in |
1 (5’1”–5’3”) | 24 3/8 | 27 1/2–27 3/4 |
2 (5’4”–5’6”) | 25 5/8 | 28 1/4–28 1/2 |
3 (5’7”–5’9”) | 26 3/4 | 29–29 1/4 |
4 (5’10”–6’1”) | 28 | 29 7/8–30 |
Once the order is paid, within 1 minute you will receive an email with the details of the order and a link to your personal account, where the following will be available for download:
1. The pdf pattern in your chosen size, in the following formats: Letter, A4, A0 and plotter format. The size of the plotter format is indicated in the name of the document. You will need a plotter printer that can print at least 900mm width. Note that for height categories 3 and 4, the plotter pattern comes on 2 pages.
2. Detailed instructions which include cutting layouts, construction steps accompanied by photos, as well as instructions on how to work with Vikisews patterns (printing, taping, adjusting, sewing terminology).
If you have any questions, please let us know at info@vikisews.com
Lourdes Instructions Sample
