Bellatrix raincoat

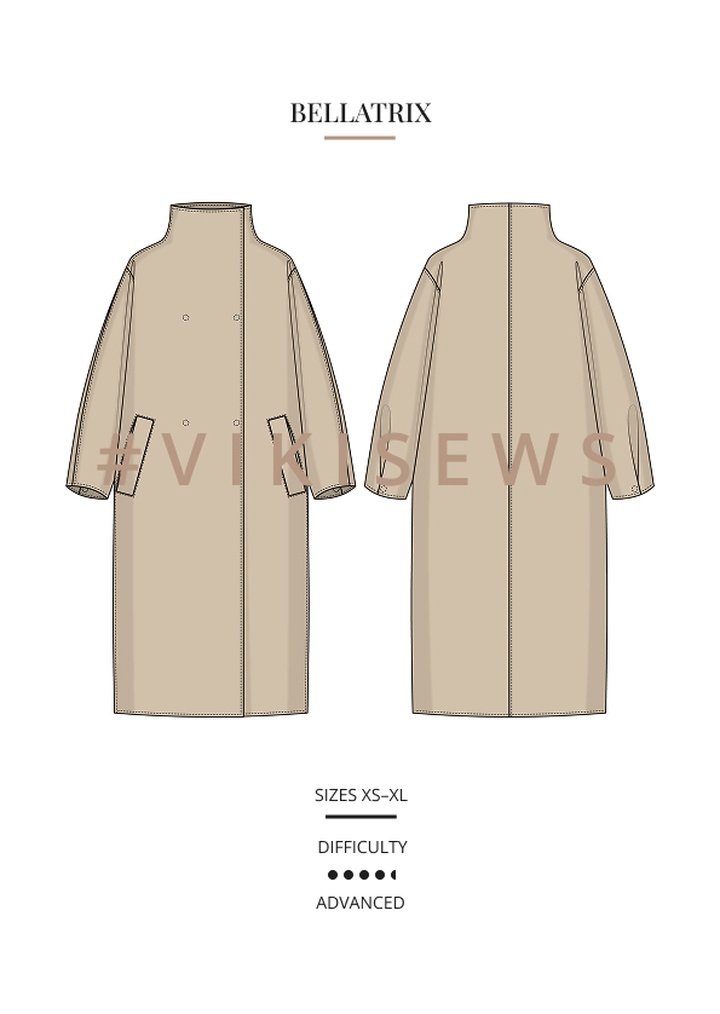

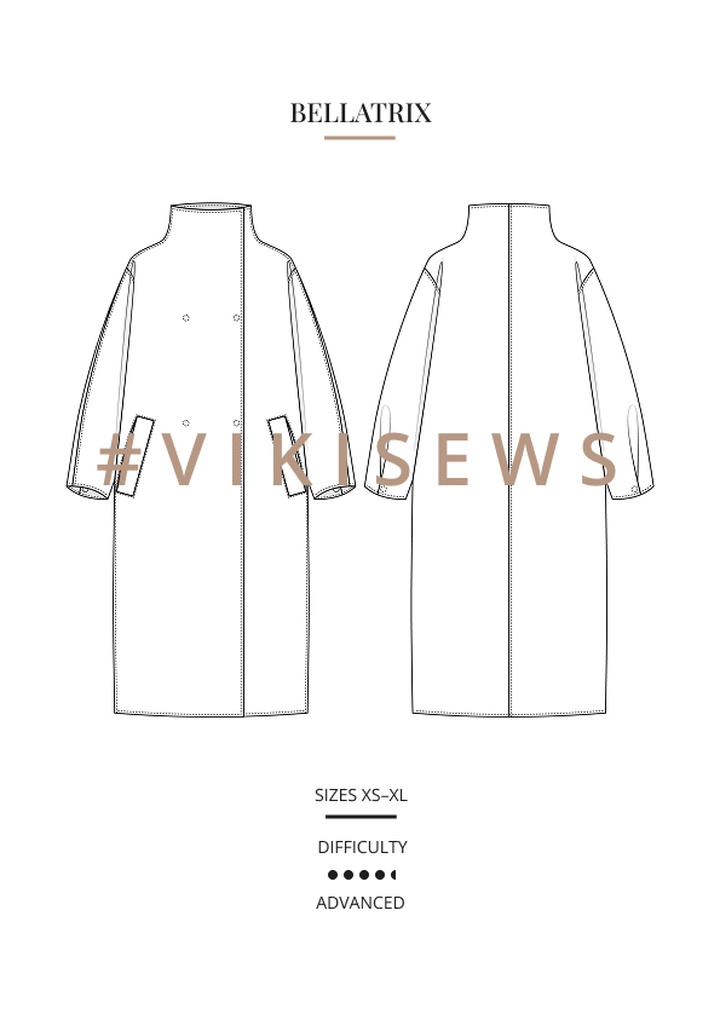

Bellatrix is a loose-fitting, fully lined raincoat with a straight silhouette. There are welt pockets with sewn-in ends on the front and a center seam on the back. The applied grown-on sleeves are loose-fitting, tapered towards the bottom, and feature snaps at the bottom. The raincoat features a grown-on stand collar and a double-breasted snap closure. All seams are topstitched. Bellatrix is above-ankle length.
Model Alia: Height 171 cm (5’6”), Bust 86 cm (33 7/8”), Waist 63 cm (24 3/4”), Hips 90 cm (35 33/8”). Alia is wearing size XS in height 3.
Approximate sewing time — 2 day (16 hours).
To sew this raincoat, choose medium–weight, pliable, soft, non-stretch or low-stretch outerwear fabrics made of natural, artificial, blended, or synthetic fibers.
The following fabrics are recommended: gabardine, denim, raincoat fabrics, taslan, and leather.
For the lining, use lining fabrics made of artificial, blended, or synthetic fibers.
The raincoat in the photo is made of gabardine. The fabric is medium weight, pliable, soft, and non-stretch. The fiber content is a blend of 57% cotton and 43% tencel. The fabric weight is 200 g/m².
The lining is made of 100% viscose. The fabric weight is 100 g/m².
1. Main fabric, 150 cm wide, with a directional print/nap, in meters:
Height, cm | Size | ||
XS–S | M–L | XL | |
1 (154–160) | 3.25 | 3.3 | 3.3 |
2 (162–168) | 3.35 | 3.4 | 3.4 |
3 (170–176) | 3.45 | 3.5 | 3.5 |
4 (178–184) | 3.55 | 3.55 | 3.6 |
Main fabric, 59” wide, with a directional print/nap, in yards:
Height, ft/size | XS–S | M–XL |
1 (5'1"–5'3") | 3 ½ | 3 ⅝ |
2 (5'4"–5'6") | 3 ⅝ | 3 ¾ |
3 (5'7"–5'9") | 3 ¾ | 3 ⅞ |
4 (5'10"–6'1") | 3 ⅞ | 3 ⅞ |
2. Lining fabric, 140 cm wide, with a directional print, in meters:
Height, cm | Size | ||
XS–S | M–L | XL | |
1 (154–160) | 2.55 | 2.7 | 2.95 |
2 (162–168) | 2.65 | 2.8 | 3.05 |
3 (170–176) | 2.8 | 2.95 | 3.15 |
4 (178–184) | 2.9 | 3.05 | 3.25 |
Lining fabric, 55” wide, with a directional print, in yards:
Height, ft | Size | ||
XS–S | M–L | XL | |
1 (5'1"–5'3") | 2 ¾ | 3 | 3 ¼ |
2 (5'4"–5'6") | 2 ⅞ | 3 | 3 ⅜ |
3 (5'7"–5'9") | 3 | 3 ¼ | 3 ½ |
4 (5'10"–6'1") | 3 ⅛ | 3 ⅜ | 3 ½ |
IMPORTANT! When purchasing fabric, please account for shrinkage and buy 5% more than required.
3. Lightweight interfacing, knit or woven, 140 cm (55”) wide, for all sizes and heights — 1.5 m (1 5/8 yd)
4. Stitched bias-cut fusible stay tape with stitch reinforcement, 1.5 cm (5/8") wide — 3.61 m (4 yd)
5. Eight S-spring set-in snaps, 12.5 mm (just under 1/2") in diameter
6. Matching thread — 2 spools
7. Matching topstitching thread (e.g., Madeira No. 35) — 2 spools
- sewing machine for construction
- stitch-in-the-ditch foot for the sewing machine (optional)
- hole puncher or awl
- press tool and molds for installing snaps
cm | inches | |
Hipline ease | 74.8-85.2 | 29 ½–33 ½ |
Height, cm | Center back length from stand collar notch down, cm | Sleeve length including shoulder width from stand collar notch down, cm |
1 (154–160) | 114.6–115.8 | 65.3–67.2 |
2 (162–168) | 118.6–119.8 | 67.2–69.1 |
3 (170–176) | 122.6–123.8 | 69.1–71 |
4 (178–184) | 126.6–127.8 | 71–72.9 |
Height, ft | Center back length from stand collar notch down , in | Sleeve length including shoulder width from stand collar notch down , in |
1 (5'1"–5'3") | 45 1/8–45 5/8 | 25 3/4–26 1/2 |
2 (5'4"–5'7") | 46 3/4–47 1/8 | 26 1/2–27 1/4 |
3 (5'7"–5'10") | 48 1/4–48 3/4 | 27 1/4–28 |
4 (5'10"–6'1") | 49 7/8–50 3/8 | 28–28 3/4 |
Once the order is paid, within 1 minute you will receive an email with the details of the order and a link to your personal account, where the following will be available for download:
1. The pdf pattern in your chosen size, in the following formats: Letter, A4, A0 and plotter format. The size of the plotter format is indicated in the name of the document. You will need a plotter printer that can print at least 900 mm width.
2. Detailed instructions which include cutting layouts, construction steps accompanied by photos, as well as instructions on how to work with Vikisews patterns (printing, taping, adjusting, sewing terminology).
If you have any questions, please let us know at info@vikisews.com
