Carpe jacket

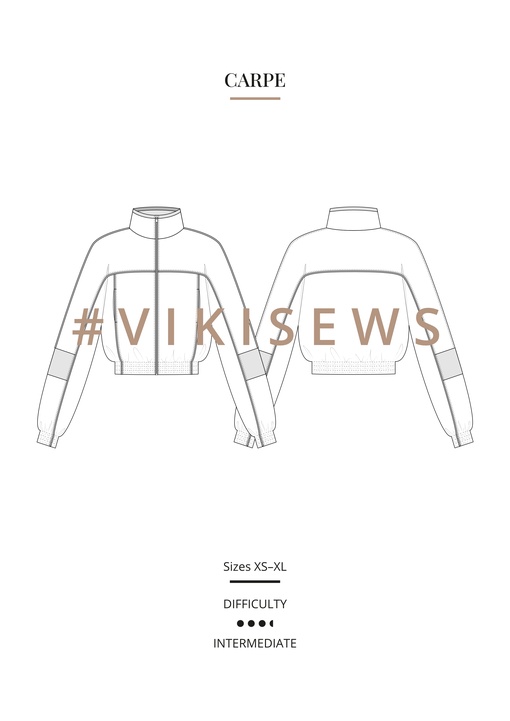

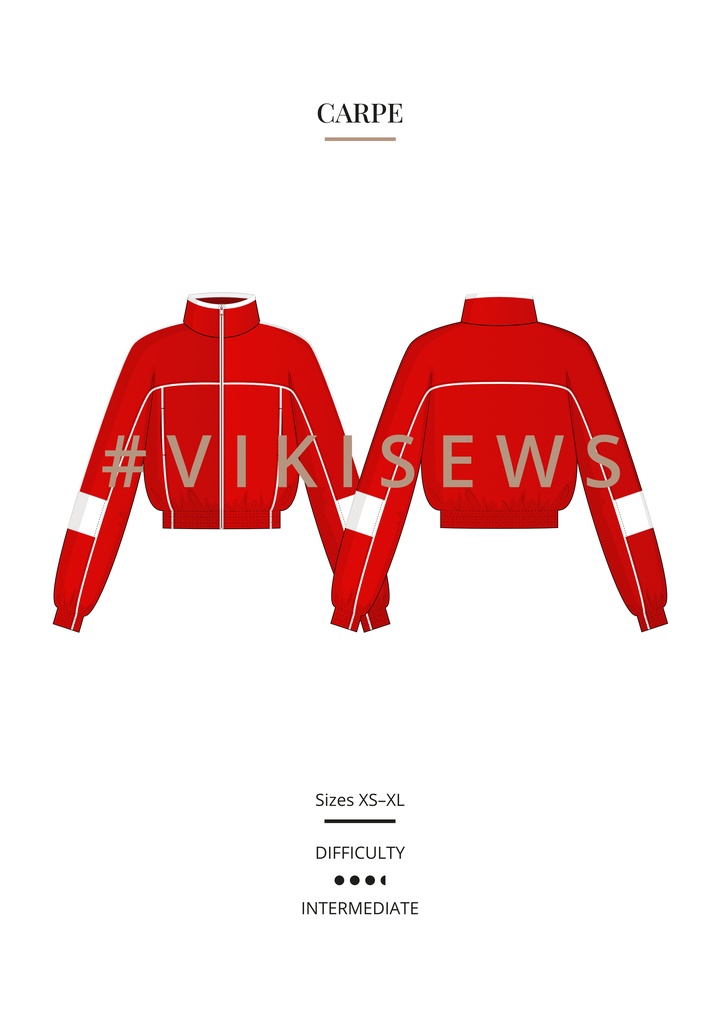

Carpe is a semi-fitted, fully lined jacket with a straight silhouette. The front is made up of the top, center, and side pieces, while the back includes the top and bottom parts. The front features inseam pockets in the princess seams. The stand collar is decorated with binding. The jacket fastens with a separating zipper at the center front. The long raglan sleeves are hacked into the front and back yokes attached to other sleeve pieces with extra seams. Below the elbow, there is a decorative sleeve insert. The sleeves are finished with grown-on elastic cuffs. The front princess seams, shoulder seams, and yoke seams that transition into extra sleeve seams feature piping and topstitching. The grown-on elastic waistband and cuffs are decorated with three rows of topstitching. The jacket is below-waist length.
Model Daria: Height 176 cm (5’9”), Bust 84 cm (33 1/8”), Waist 63 cm (24 3/4”), Hips 91 cm (35 7/8”). Daria is wearing size XS in height 3.
Approximate sewing time — 2.5 days (20 hours).
To sew this jacket, choose medium-weight, non-stretch or low-stretch fabrics made of natural fibers, artificial fibers, blends, or synthetics.
The following fabrics are recommended: outerwear fabrics, dewspo, taslan, membrane fabrics.
Attention! We do not recommend using stretchy knit fabrics.
For the lining, choose lining fabrics made of artificial fibers (viscose), blends (viscose + elastane, viscose + polyester), or synthetics (polyester, polyester + elastane).
The jacket in the photos is made of outerwear fabric. The fabric is medium weight and has very little stretch. The fiber content is 100% polyester. The fabric weight is 280 g/m2.
The lining fabric is mesh lining, 100% polyester. The fabric weight is 115 g/m2.
1. Main fabric, 140 cm wide, with a directional print/nap, in meters:
Height, cm | Size | ||||
XS | S | M | L | XL | |
1 (154–160) | 1.6 | 1.65 | 1.7 | 1.9 | 2 |
2 (162–168) | 1.65 | 1.7 | 1.75 | 1.95 | 2 |
3 (170–176) | 1.7 | 1.75 | 1.75 | 2 | 2.05 |
4 (178–184) | 1.75 | 1.8 | 1.8 | 2 | 2.1 |
Main fabric, 150 cm wide, with a directional print/nap, in meters:
Height, cm | Size | ||||
XS | S | M | L | XL | |
1 (154–160) | 1.5 | 1.5 | 1.65 | 1.7 | 1.75 |
2 (162–168) | 1.5 | 1.5 | 1.7 | 1.7 | 1.75 |
3 (170–176) | 1.55 | 1.55 | 1.75 | 1.75 | 1.8 |
4 (178–184) | 1.55 | 1.6 | 1.75 | 1.8 | 1.8 |
Main fabric, 55" wide, with a directional print/nap, in yards:
Height, ft | Size | ||||
XS | S | M | L | XL | |
1 (5’1”–5’3”) | 1 3/4 | 1 3/4 | 1 7/8 | 2 1/8 | 2 1/8 |
2 (5’4”–5’6”) | 1 3/4 | 1 7/8 | 1 7/8 | 2 1/8 | 2 1/8 |
3 (5’7”–5’9”) | 1 7/8 | 1 7/8 | 1 7/8 | 2 1/8 | 2 1/4 |
4 (5’10”–6’1”) | 1 7/8 | 2 | 2 | 2 1/8 | 2 1/4 |
Main fabric, 59" wide, with a directional print/nap, in yards:
Height, ft | Size | |||
XS−S | M | L | XL | |
1 (5’1”–5’3”) | 1 5/8 | 1 3/4 | 1 7/8 | 1 7/8 |
2 (5’4”–5’6”) | 1 5/8 | 1 7/8 | 1 7/8 | 1 7/8 |
3 (5’7”–5’9”) | 1 3/4 | 1 7/8 | 1 7/8 | 2 |
4 (5’10”–6’1”) | 1 3/4 | 1 7/8 | 2 | 2 |
2. Additional fabric, 140–150 cm (55–59") wide, for all sizes in all heights — 0.15 m (1/8 yd)
3. Lining fabric, 140 cm wide, with a directional print/nap, in meters:
Height, cm | Size | ||||
XS | S | M | L | XL | |
1 (154–160) | 1.1 | 1.15 | 1.15 | 1.2 | 1.2 |
2 (162–168) | 1.15 | 1.15 | 1.2 | 1.25 | 1.25 |
3 (170–176) | 1.2 | 1.2 | 1.2 | 1.25 | 1.3 |
4 (178–184) | 1.2 | 1.25 | 1.25 | 1.3 | 1.3 |
Lining fabric, 55” wide, with a directional print/nap, in yards:
Height, ft | Size | ||
XS | S−M | L−XL | |
1 (5’1”–5’3”) | 1 1/4 | 1 1/4 | 1 1/4 |
2 (5’4”–5’6”) | 1 1/4 | 1 1/4 | 1 3/8 |
3 (5’7”–5’9”) | 1 1/4 | 1 1/4 | 1 3/8 |
4 (5’10”–6’1”) | 1 1/4 | 1 3/8 | 1 3/8 |
IMPORTANT! When purchasing fabric, please account for shrinkage and buy 5% more than required.
4. Lightweight interfacing, knit or woven, 140 cm wide, in meters:
Height, cm | Size | ||
XS | S–M | L–XL | |
1 (154–160) | 0.5 | 0.55 | 0.55 |
2 (162–168) | 0.55 | 0.55 | 0.55 |
3 (170–176) | 0.55 | 0.55 | 0.6 |
4 (178–184) | 0.55 | 0.55 | 0.6 |
Lightweight interfacing, knit or woven, 55" wide, in yards:
Height, ft | Size | |
XS | S–XL | |
1 (5’1”–5’3”) | 1/2 | 5/8 |
2 (5’4”–5’6”) | 5/8 | 5/8 |
3 (5’7”–5’9”) | 5/8 | 5/8 |
4 (5’10”–6’1”) | 5/8 | 5/8 |
5. Stitched bias-cut fusible stay tape with stitch reinforcement, 1.5 cm (5/8”) wide — 1.5 m (1 5/8 yd)
6. One separating zipper Nos. 3.5–4, 55 cm (21 5/8") long, for all sizes in all heights
7. Two zipper top stoppers for adjusting the zipper length (if needed)
8. Elastic, 5 cm wide, for all heights (including seam allowances), cm:
Size | XS | S | M | L | XL |
Waistband elastic length | 65 | 73 | 81 | 89 | 97 |
Cuff elastic length (cut into 2 equal pieces) | 44.5 | 45 | 46 | 47 | 48 |
Total | 109.5 | 118 | 127 | 136 | 145 |
Elastic, 2" wide, for all heights (including seam allowances), inches:
Size | XS | S | M | L | XL |
Waistband elastic length | 25 5/8 | 28 3/4 | 31 7/8 | 35 | 38 1/4 |
Cuff elastic length (cut into 2 equal pieces) | 17 1/2 | 17 3/4 | 18 1/8 | 18 1/2 | 18 7/8 |
Total | 43 1/8 | 46 1/2 | 50 | 53 1/2 | 57 1/8 |
9. Decorative satin piping, 1.2 cm (1/2") wide, for all sizes in all heights — 5.5 m (6 yd)
10. Matching thread for the main, additional, and lining fabrics — 1 spool each (if the fabric colors are different)
- sewing machine for construction
- stitch-in-the-ditch foot for the sewing machine (optional)
- one-sided zipper foot for the sewing machine
Ease type | Ease measurement, cm | Ease measurement, in |
Bust ease | 27.3−32.5 | 10 3/4−12 3/4 |
Waistline ease | 44.7−49 | 17 5/8−19 1/4 |
Upper arm ease | 19.8−22.7 | 7 3/4−8 7/8 |
Height, cm | Back length, cm | Sleeve length including shoulder width and cuff, cm |
1 (154–160) | 49.3−49.8 | 71.8−75.4 |
2 (162–168) | 50.3−50.8 | 74−77.6 |
3 (170–176) | 51.3−51.8 | 76−79.7 |
4 (178–184) | 52.3−52.8 | 78.1−81.7 |
Height, ft | Back length, in | Sleeve length including shoulder width and cuff, in |
1 (5’1”–5’3”) | 19 3/8−19 5/8 | 28 1/4−29 5/8 |
2 (5’4”–5’6”) | 19 3/4−20 | 29 1/8−30 1/2 |
3 (5’7”–5’9”) | 20 1/4−20 3/8 | 29 7/8−31 3/8 |
4 (5’10”–6’1”) | 20 5/8−20 3/4 | 30 3/4−32 1/8 |
Once the order is paid, within 1 minute you will receive an email with the details of the order and a link to your personal account, where the following will be available for download:
1. The pdf pattern in your chosen size, in the following formats: Letter, A4, A0 and plotter format. The size of the plotter format is indicated in the name of the document. You will need a plotter printer that can print at least 900mm width. Note that for heights 3 and 4 the plotter pattern comes on 2 pages.
2. Detailed instructions which include cutting layouts, construction steps accompanied by photos, as well as instructions on how to work with Vikisews patterns (printing, taping, adjusting, sewing terminology).
If you have any questions, please let us know at info@vikisews.com
