Mavis jacket

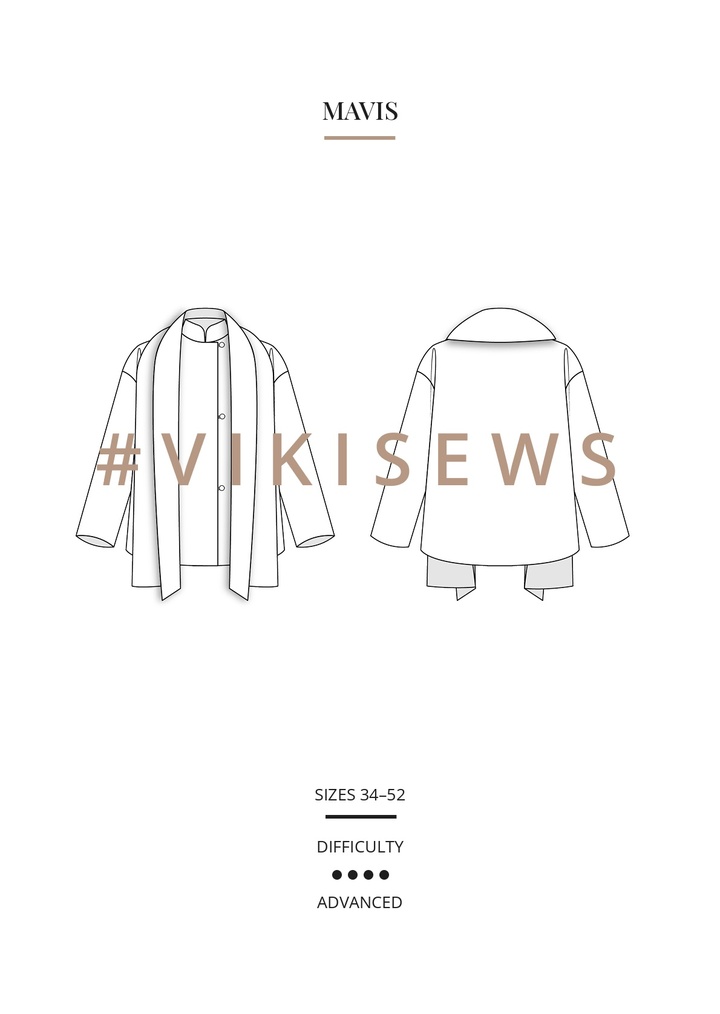

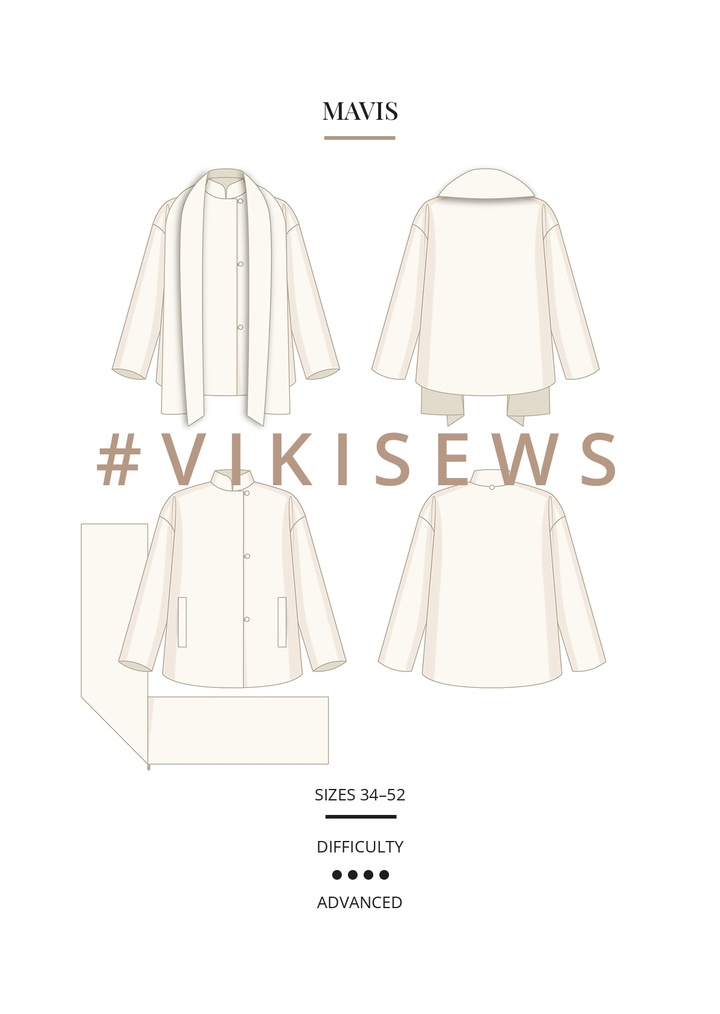

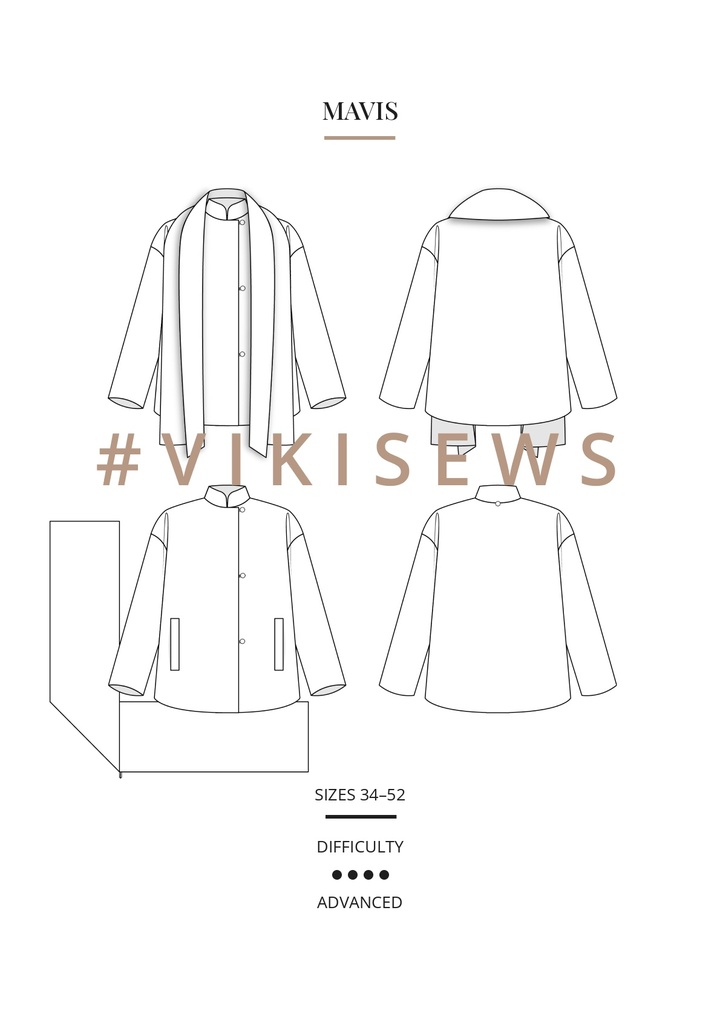

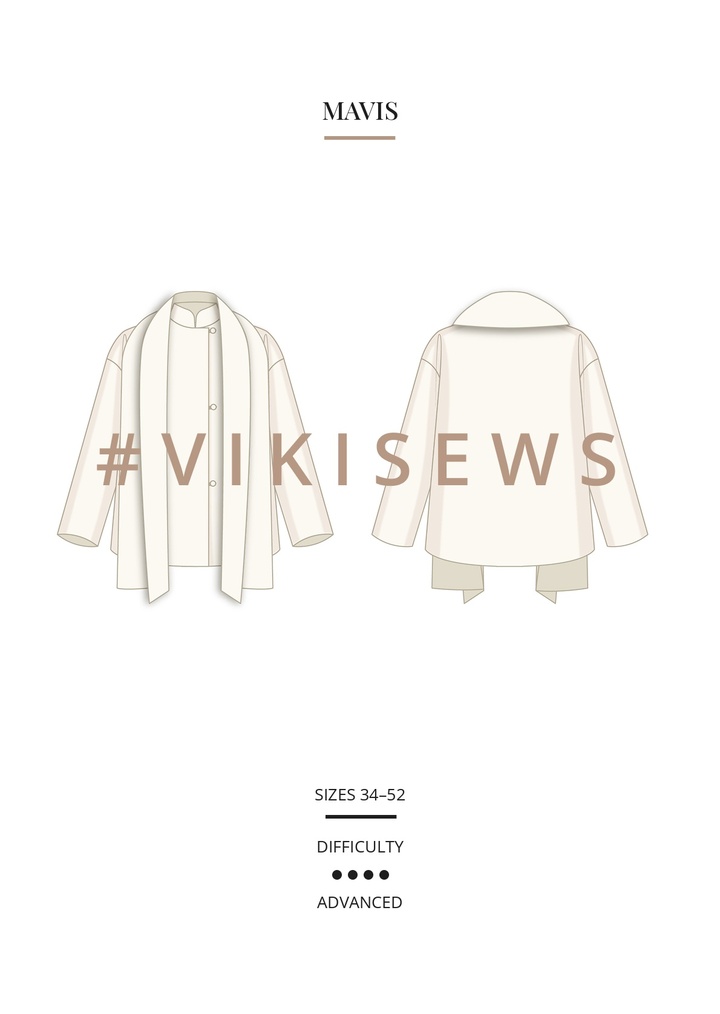

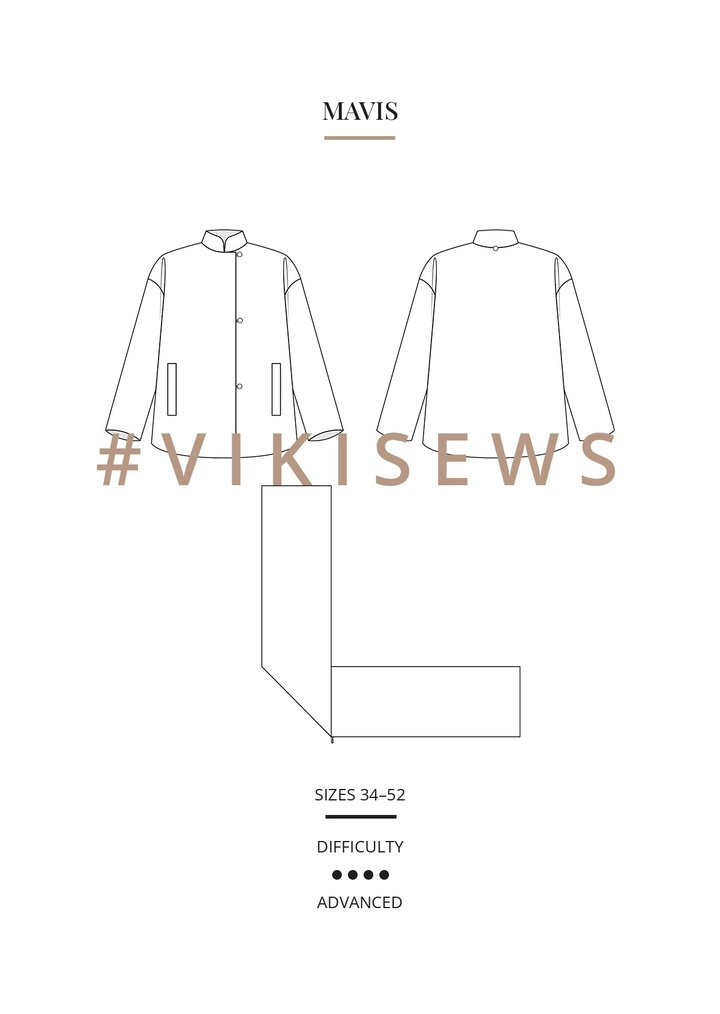

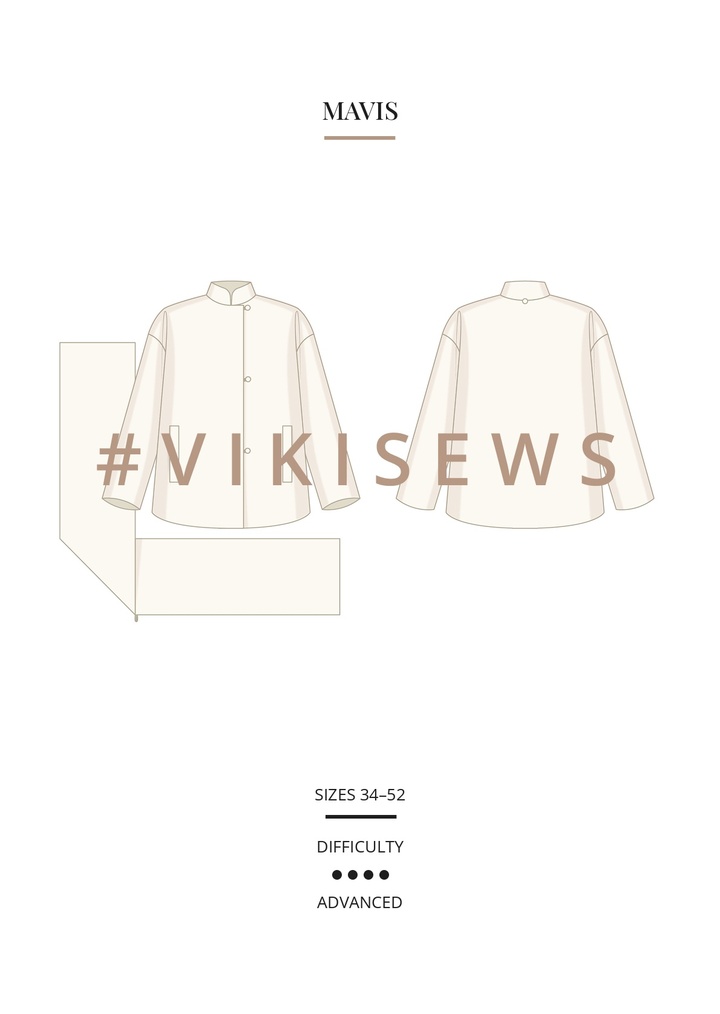

Mavis is a semi-fitted insulated jacket with a straight silhouette. The front features welt pockets. The shoulder line is extended. The jacket has a stand collar and long shirt sleeves. The off-center closure fastens with buttons and rouleau loops. The jacket comes with a matching scarf that fastens to a button on the back collar. The jacket is lined. Mavis is hip-length.
Model Alena: height 174 cm, bust 84 cm, waist 62 cm, hips 89 cm. She is wearing size 36, height group 3.
Approximate sewing time: 2 days (16 hours).
To sew this jacket, choose medium-weight, soft, non-stretch, water-repellent, windproof raincoat and outerwear fabrics made of natural, artificial, blended, or synthetic fibers.
The following fabrics are recommended: raincoat fabric, outerwear fabric, dewspo, taslan, and membrane fabric.
For the lining, we recommend using lining fabrics made of artificial fibers (viscose), blended fibers (viscose + elastane, viscose + polyester), or synthetic fibers (polyester, polyester + elastane).
As the insulation, we recommend Alpolux, IsoSoft, or polyester batting, 200–250 g/m².
The jacket in the photo is made of outerwear fabric. The fabric is medium weight and low stretch. The fiber content is 100% polyamide. The fabric weight is 45 g/m².
The lining is made of 100% viscose. The lining fabric weight is 80 g/m².
Alpolux insulation was used for this jacket. The insulation weight is 200 g/m².
1. Main fabric, 140 cm wide, with a directional print/nap, in meters:
Height, cm | 34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 |
1 (154–160) | 2.75 | 2.75 | 2.75 | 2.8 | 3.15 | 3.2 | 3.3 | 3.35 | 3.4 | 3.45 |
2 (162–168) | 2.85 | 2.9 | 2.9 | 2.9 | 3.3 | 3.35 | 3.4 | 3.45 | 3.5 | 3.6 |
3 (170–176) | 3 | 3 | 3 | 3.05 | 3.4 | 3.45 | 3.5 | 3.55 | 3.65 | 3.7 |
4 (178–184) | 3.1 | 3.1 | 3.1 | 3.15 | 3.55 | 3.6 | 3.65 | 3.7 | 3.75 | 3.8 |
Main fabric, 55” wide, with a directional print/nap, in yards:
Height, ft | 34–38 | 40 | 42–44 | 46–48 | 50–52 |
1 (5’1”–5’3”) | 3 | 3 | 3 1/2 | 3 5/8 | 3 3/4 |
2 (5’4”–5’6”) | 3 1/8 | 3 1/8 | 3 5/8 | 3 3/4 | 3 7/8 |
3 (5’7”–5’9”) | 3 1/4 | 3 3/8 | 3 3/4 | 3 7/8 | 4 |
4 (5’10”–6’1”) | 3 3/8 | 3 1/2 | 3 7/8 | 4 | 4 1/8 |
2. Lining fabric, 140 cm wide, with a directional print, in meters:
Height, cm | 34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 |
1 (154–160) | 1.25 | 1.3 | 1.3 | 1.3 | 1.45 | 1.5 | 1.65 | 1.65 | 1.7 | 1.7 |
2 (162–168) | 1.3 | 1.35 | 1.35 | 1.4 | 1.55 | 1.55 | 1.7 | 1.75 | 1.8 | 1.8 |
3 (170–176) | 1.35 | 1.4 | 1.4 | 1.5 | 1.6 | 1.65 | 1.8 | 1.8 | 1.85 | 1.85 |
4 (178–184) | 1.4 | 1.45 | 1.5 | 1.55 | 1.7 | 1.7 | 1.85 | 1.9 | 1.95 | 1.95 |
Lining fabric, 55” wide, with a directional print, in yards:
Height, ft | 34 | 36–38 | 40 | 42–44 | 46 | 48 | 50–52 |
1 (5’1”–5’3”) | 1 3/8 | 1 3/8 | 1 3/8 | 1 5/8 | 1 3/4 | 1 3/4 | 1 7/8 |
2 (5’4”–5’6”) | 1 3/8 | 1 1/2 | 1 1/2 | 1 3/4 | 1 7/8 | 1 7/8 | 2 |
3 (5’7”–5’9”) | 1 1/2 | 1 1/2 | 1 5/8 | 1 3/4 | 2 | 2 | 2 |
4 (5’10”–6’1”) | 1 1/2 | 1 5/8 | 1 3/4 | 1 7/8 | 2 | 2 1/8 | 2 1/8 |
3. Insulation, 150 cm wide, cut in one direction, in meters:
Height, cm | 34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 |
1 (154–160) | 2.5 | 2.55 | 2.6 | 2.65 | 2.7 | 2.75 | 2.8 | 2.85 | 2.9 | 2.95 |
2 (162–168) | 2.6 | 2.65 | 2.7 | 2.75 | 2.8 | 2.85 | 2.95 | 3 | 3 | 3.05 |
3 (170–176) | 2.7 | 2.75 | 2.8 | 2.85 | 2.9 | 2.95 | 3.05 | 3.1 | 3.1 | 3.15 |
4 (178–184) | 2.8 | 2.85 | 2.9 | 2.92 | 3 | 3.05 | 3.15 | 3.15 | 3.2 | 3.25 |
Insulation, 59” wide, cut in one direction, in yards:
Height, ft | 34 | 36 | 38 | 40 | 42 | 44 | 46 | 48–50 | 52 |
1 (5’1”–5’3”) | 2 3/4 | 2 3/4 | 2 7/8 | 2 7/8 | 3 | 3 | 3 | 3 1/8 | 3 1/4 |
2 (5’4”–5’6”) | 2 7/8 | 2 7/8 | 3 | 3 | 3 | 3 1/8 | 3 1/4 | 3 1/4 | 3 3/8 |
3 (5’7”–5’9”) | 3 | 3 | 3 | 3 1/8 | 3 1/8 | 3 1/4 | 3 3/8 | 3 3/8 | 3 1/2 |
4 (5’10”–6’1”) | 3 | 3 1/8 | 3 1/8 | 3 1/4 | 3 1/4 | 3 3/8 | 3 1/2 | 3 1/2 | 3 1/2 |
IMPORTANT! When purchasing fabric, please account for shrinkage and buy 5% more than required.
4. Round cord, 3–4 mm (1/8”) in diameter — 30 cm (11 3/4”)
5. Four button blanks for covered buttons, 2 cm (3/4”) in diameter
6. Matching thread for the main fabric — 1 spool
7. Matching thread for the lining fabric — 1 spool
− sewing machine for construction
− stitch-in-the-ditch foot (optional)
− walking foot
− cord threader (may be replaced with a safety pin)
− loop turner
Bust ease | Waistline ease | Hipline ease | Upper arm ease | |
cm | 45.4–47.4 | 62.3–64.3 | 31.2–34.8 | 17.3–21.2 |
inches | 17 7/8–18 5/8 | 24 1/2–25 3/8 | 12 1/4–13 3/4 | 6 3/4–8 3/8 |
Height, cm | Back length, cm | Sleeve length including shoulder width, cm |
1 (154–160) | 66.4–70 | 71.5–73.8 |
2 (162–168) | 69.4–73 | 74.4–76.7 |
3 (170–176) | 72.4–76 | 77.3–79.6 |
4 (178–184) | 75.4–79 | 80.1–82.5 |
Height, ft | Back length, in | Sleeve length including shoulder width, in |
1 (5’1”–5’3”) | 26 1/8–27 1/2 | 28 1/8–29 |
2 (5’4”–5’6”) | 27 3/8–28 3/4 | 29 1/4–30 1/4 |
3 (5’7”–5’9”) | 28 1/2–29 7/8 | 30 3/8–31 3/8 |
4 (5’10”–6’1”) | 29 5/8–31 1/8 | 31 1/2–32 1/2 |
Once the order is paid, within 1 minute you will receive an email with the details of the order and a link to your personal account, where the following will be available for download:
1. The pdf pattern in your chosen size, in the following formats: Letter, A4, A0 and plotter format. The size of the plotter format is indicated in the name of the document. You will need a plotter printer that can print at least 900 mm width.
2. Detailed instructions which include cutting layouts, construction steps accompanied by photos, as well as instructions on how to work with Vikisews patterns (printing, taping, adjusting, sewing terminology).
If you have any questions, please let us know at info@vikisews.com
Mavis jacket instruction sample
